Brief Description:

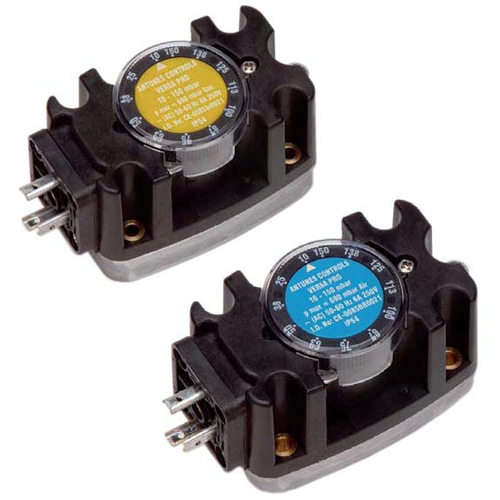

Pressure S witches monitor pressure and make or break the electrical control circuit when pressure drops below or rises above the desired set point.

The pressure settings are easy to read and adjust.

All models are available in automatic reset operation only.

The switches are sturdy and constructed with a durable plastic electrical enclosure and a die-cast aluminum inlet base.

Approval : CE - 0085 BR 0021.

Detailed Description:

TECHNICAL DATA:

• Housing: Aluminium die casting.
• Electrical ratings: 6A at 250 V.
• Switch: Polyamide.
• Protection: IP54 acc. to IEC 529.
• Diaphragms: NBR.
• Electrical connection: 3 pin connector for line sockets DIN - EN 175 301 - 803 (without ground protection).
• Ambient temperature: -15 ÷ +60° C.
• Connection: ¼ - 19 BSP Thread.
• Max. operating pressure: 690 mbar.
• Peak pressure: 1 bar.

FEATURES:

• Compact Design.
• Accurate.
• Adjustable Setpoints.
• Diaphragm actuated safety limit switch.
• No relief valve.
• Ventless removable transparent adjustment knob cover.
• Directly mountable to integrated gas valve trains.
• Pressure test point incorporated in the Ø9 mm metal body.
